01. UVM-01P [Portable detector]
UVM-01P 탐상기는 Single probe를 이용하여 소재의 결함 및 두께 측정 가능할 수 있다.
300V 출력의 강력한 Power를 사용하고 수직/사각 프로브를 사용할 수 있다.
UVM-01P flaw detector can measure defect and thickness of site to use Single probe.
Can use strong Power of 300V output and verticality/four corners Probe.
| 항목 Item |
내용 Contents |
사양 Specification |
|---|---|---|
|
초음파 측정 방법 Ultrasonic Measuring Method |
프로브 영점 조정 Probe zero-point correction |
자동 영점조정 (물거리 측정법) Automatic zero-point correction |
|
진동자 인가 전원 Action power |
DC 40~300V | |
|
음속 측정 범위 Acoustic velocity measuring range |
1000~9999 m/sec | |
|
두께 측정 범위 Thickness measuring range |
5~500 mm | |
|
음속 측정 정밀도 Acoustic velocity measurement accuracy |
±0.1 m/sec | |
|
음속 표시 정밀도 Acoustic velocity indication accuracy |
9999.999 m/sec | |
|
사용 주파수 대역 Use cycle maniple station |
1~10 MHz | |
|
사용 프로브 종류 Kind of probe |
타사 프로브 호환 가능 Other firm probe transposition possibility |
|
|
화면 표시 방법 Display Method |
화면 데이터 갱신 속도 The screen data renewal speed |
60 Hz |
|
음속 측정 방법 Acoustic velocity measuring method |
수침법 Immersed method |
|
|
음속 측정 시간 Acoustic velocity measurement time |
60 Hz (1 step push button) | |
|
화면 크기 및 해상도 Screen size and resolution |
6" Color LCD 320*240 | |
|
사용 전원 Power |
AC 110~220V / DC 5V, 15V switch automatically | |
|
데이터 저장 능력 Data storage capacity |
A-scan data 100 음속 측정치 1,000 |
|
|
사용 언어 Language |
영어/한글 English/Korean |
|
|
장비크기 Size |
260*135*350 mm | |
02. Einstein-Ⅱ PLUS [Portable detector]
Einstein-Ⅱ PLUS 탐상기는 콤팩트하고 가벼운 휴대용 장비이며 사용자에게 익숙한 디지털 초음파 탐상기이다.
컬러 LCD 디스플레이를 가지는 Einstein-Ⅱ PLUS는 와이드한 신호 표현과 빠른 탐상 속도를 지원한다.
Einstein-Ⅱ PLUS is Portable, Compact, Light in weight and user friendly designed Digital Ultrasonic Flaw Detector.
It has Color LCD Display, it provides wide viewing angle and allows fast scanning speed.
|
항목 Item |
내용 Contents |
사양 Specification |
|---|---|---|
|
초음파 측정 방법 ultrasonic Measuring Method |
감도 조정 범위 Gain calibration range |
0~100dB (0.5, 1, 2, 6, 12 or 20dB step) |
|
진동자 인가 전원 Action power |
DC 40~300V | |
|
음속 측정 범위 Acoustic velocity measuring accuracy |
1000~9999 m/sec. | |
|
딜레이 Delay |
0~3000 mm | |
|
음속 표시 정밀도 Acoustic velocity indecation accuracy |
9999.999 m/sec | |
|
사용 주파수 대역 Use cycle maniple station |
0.5~15MHz | |
|
사용 프로브 종류 Kind of use probe |
타사 프로브 호환 가능 Other firm probe transposition possibility |
|
|
화면 표시 방법 Display Method |
화면 데이터 갱신 속도 The screen data renewal speed |
50Hz |
|
음속 측정 방법 Acoustic velocity measuring method |
수침법 Immersed method |
|
|
소프트웨어 Software |
A-scan PC 표현 연결 가능 A-Scan data is supplied to PC |
|
|
화면 크기 및 해상도 Screen size and resolution |
122*92mm TFT Color LCD 320*240 | |
|
사용 전원 Power |
AC 110~220V / DC 5V, 15V switch automatically | |
|
데이터 저장 능력 Data storage capacity |
200 data | |
|
사용 언어 Language |
영어 English |
|
|
장비 크기 Size |
152*255*70mm | |
03. 자동화 시스템
Automatic System
-
간단한 연결 장치로 시스템화 가능
Can do the systemized to simple install -
사용자 중심의 데이터 관리 시스템
Customized data management system -
구상화율 분석오차 ±0.5%
Nodularity ratio error ±0.5% -
A-Scan Display로 측정 조건 확인 가능
Measurement conditin can be checked with A-Scan display -
내부결함 탐상 가능
Inside fault inspection -
다중 시스템 구성으로 완전 자동 검사 가능
Automatic measurement system -
작업 공정의 단순화로 오차율 최소화
Minimize the error rate simplifying the work process
04. 미니수조 음속측정기
Mini Watertank Ultrasonic Measuring Instrument
-
간편한 수조 구성
Simple water tank -
높은 이동성, 간편한 설치 방법
High movility, Easy installation -
현장 설치 및 시스템화 가능
Systematization -
저렴한 기구 구성
Cheap price -
수침형 정밀도 유지
High presicion -
샘플 시험에 적합함
Good for sample test
05. 거치식 음속측정기
Deferment way Ultrasonic Measuring Instrument
-
안정적인 검사 가능
Stable inspection -
시스템 장비와 동일 성능 유지
Performance is same with the system -
전수검사 가능
Total inspection -
완제품 상태에서 검사 가능
Manufactured product inspection -
시편검사 가능
Specimen inspection -
접촉매질 자동 공급형으로 수침탐상 효과
Automatic feeding of contact medium
06. Pipe AUT System
-
4-채널 파이프형 Single 프로브를 이용한 소형 초음파 탐상 시스템
Small type Ultrasonic inspection system using 4-channel pipe type single probe
07. Gas Cylinder AUT System
-
5~15 채널 Cylinder 형 Single 프로브를 이용한 초음파 탐상 시스템
Ultrasonic inspection system using 5~15-channel cylinder type single probe -
빠른 검사 속도
Fast scan speed

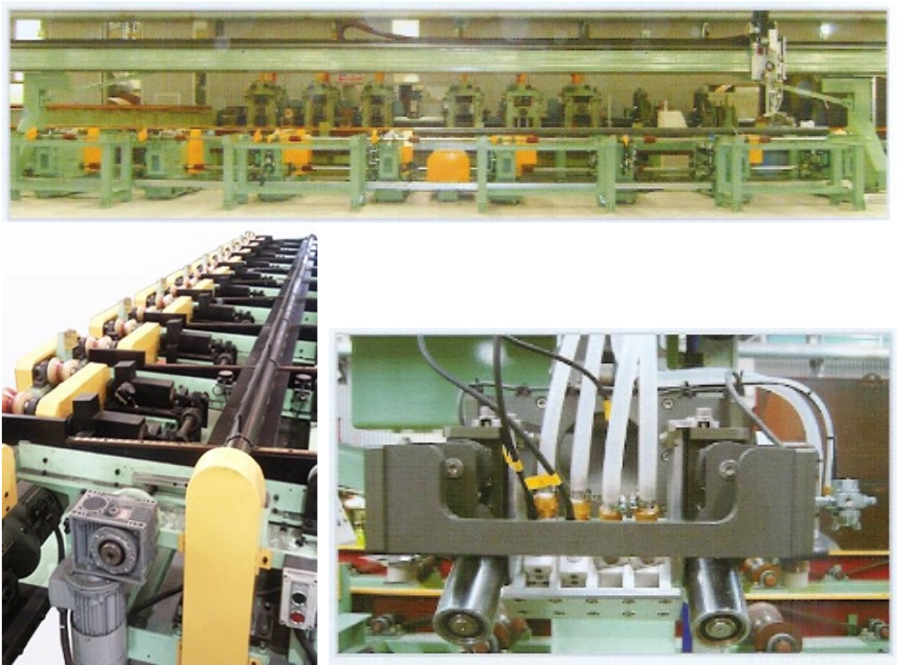

08. Conveyer Line AUT System
-
4-채널 Pipe 형 Single 프로브를 이용한 초음파 탐상 시스템
Ultrasonic system using 4-channel pipe type single probe

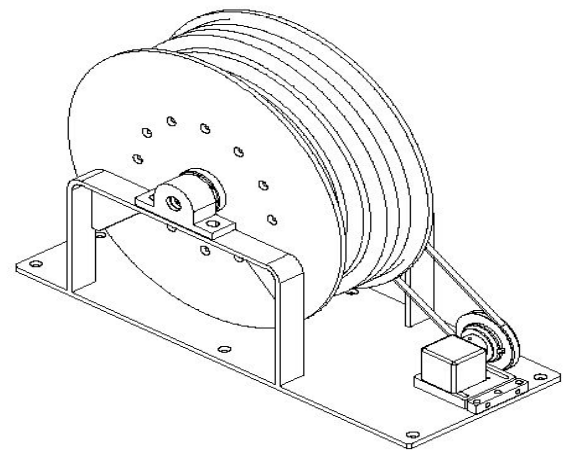

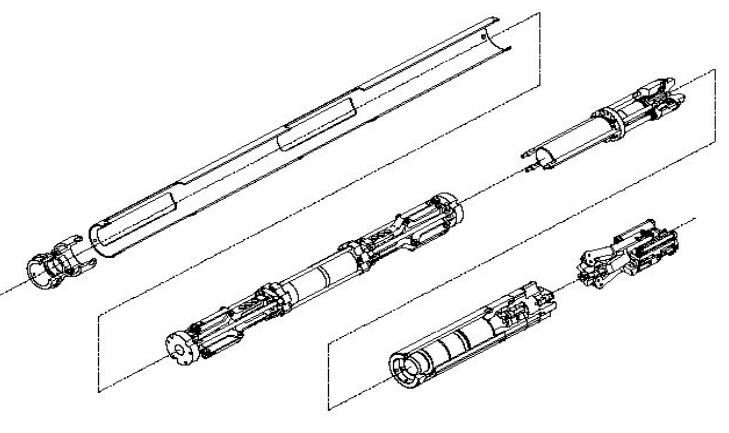

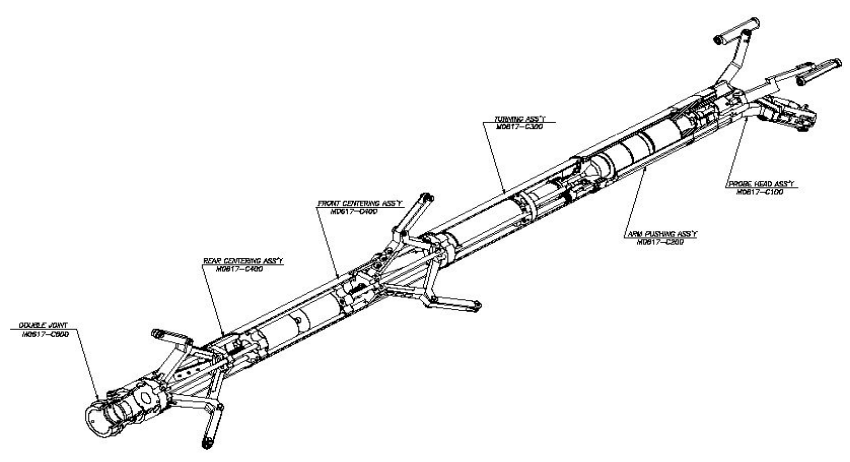

09. Boresonic UT System For Turbine Rotor
* 사진을 클릭해서 자세히 볼 수 있습니다.
* Click on the image to see it in detail.

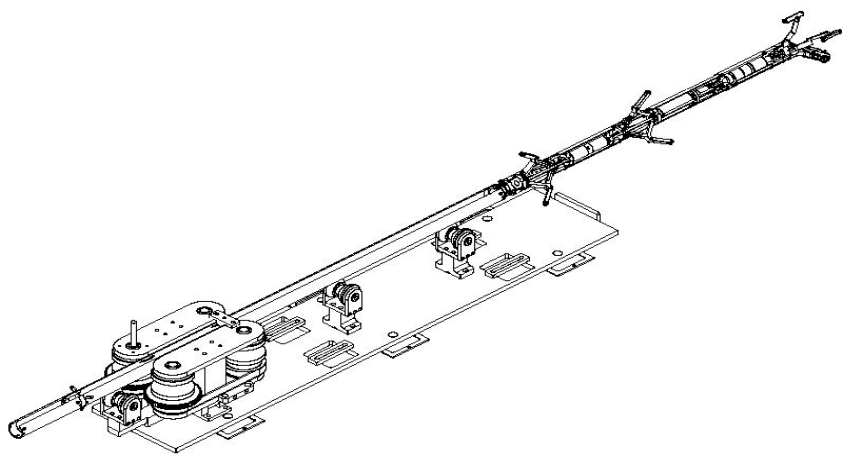

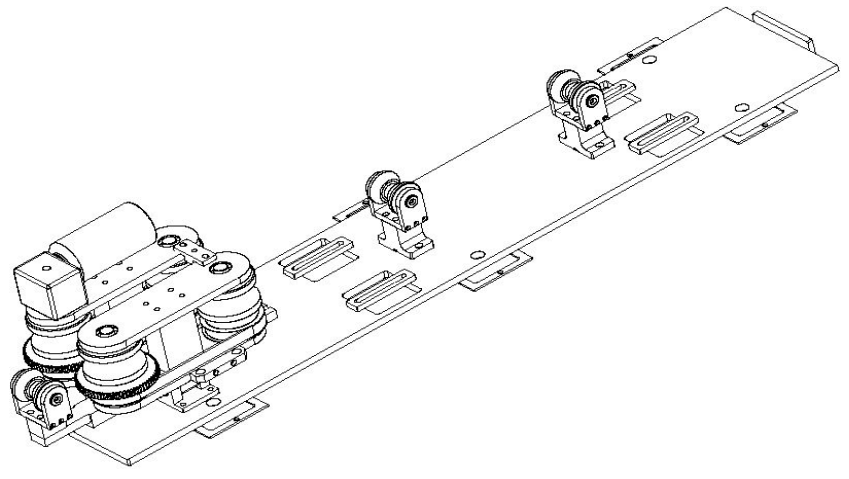

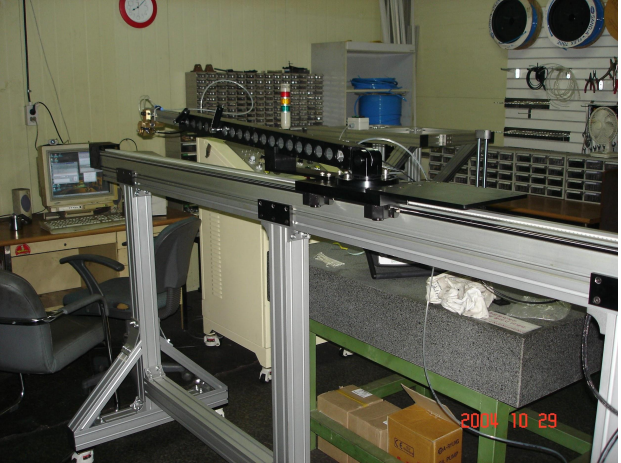

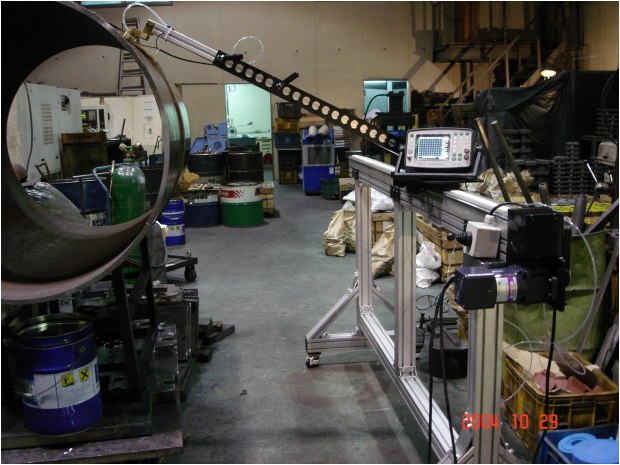

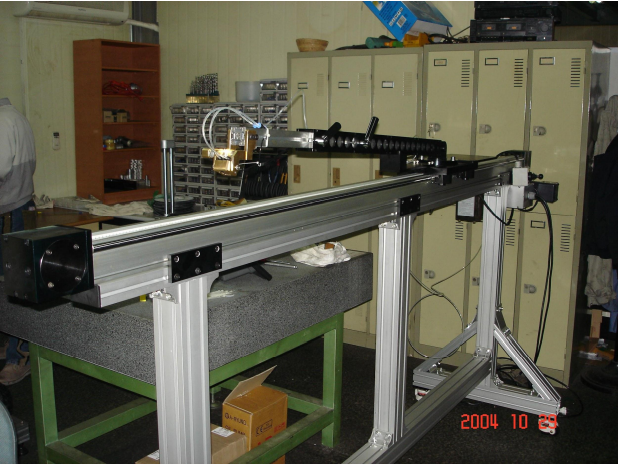

10. Portable Pipe UT System
* 사진을 클릭해서 자세히 볼 수 있습니다.
* Click on the image to see it in detail.
11. 검사 프로그램
Measurement program
|
권장 시스템 사양 Recommanded System Specification |
|
|---|---|
|
검사 범위 Inspection Range |
|
특징 Feature |
|
12. 휴대형 소재음속 측정기
Portable Site Ultrasonic Measuring Instrument
-
단 한 번의 접촉으로 음속 측정 가능
Measuring with just one touch -
휴대가 간편함
Able to carry -
모든 컴퓨터와 통신 가능(RS-232)
Communicate with all computer with RS-232 -
원하는 프로그램으로 수정 가능
Can modify to the program which the user wants -
가능한 개발 툴 제공
Any user can modify to the program with development kit

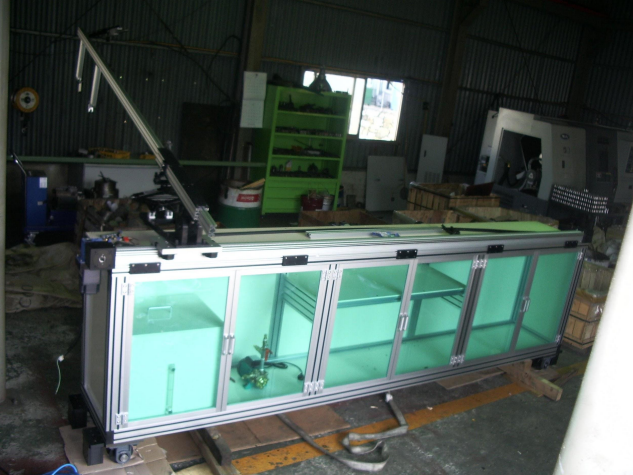

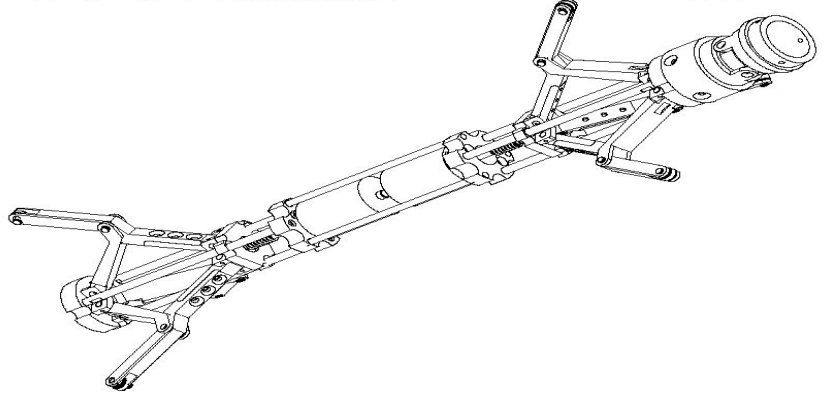

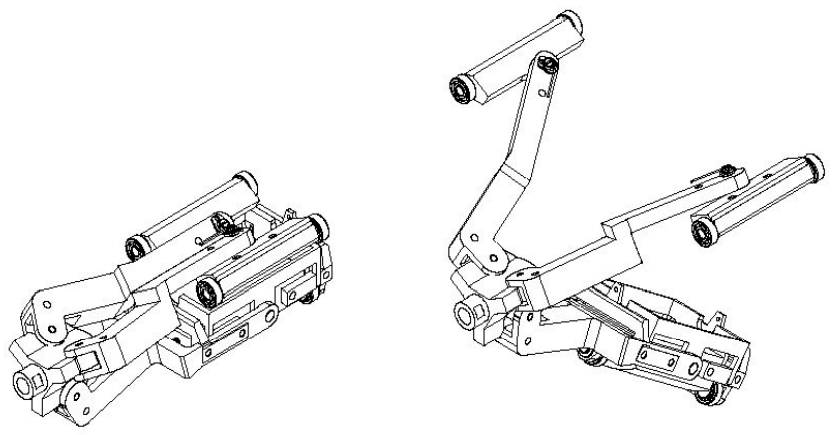

13. Multi Probe Block System

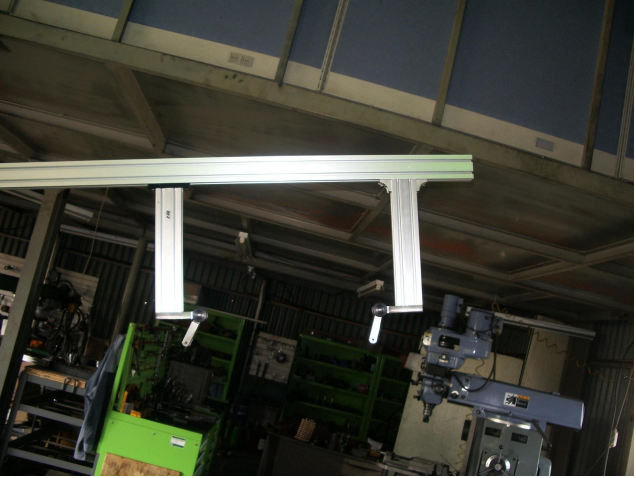

- Block part -
- Arm part -
- Body part -
* 사진을 클릭해서 자세히 볼 수 있습니다.
* Click on the image to see it in detail.

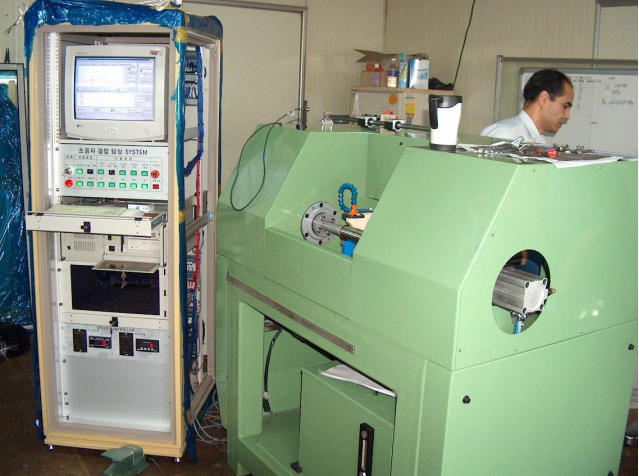

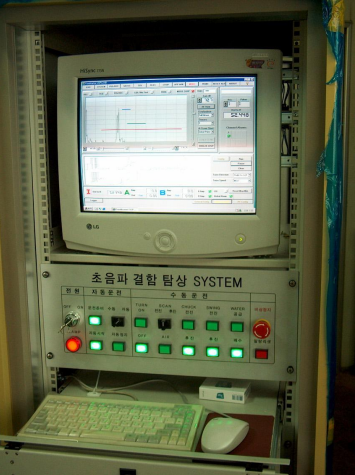

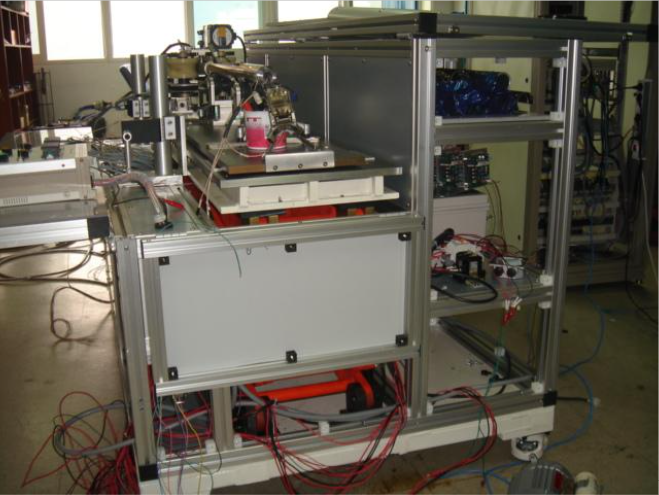

14. Car Parts UT Flaw Detector System
* 사진을 클릭해서 자세히 볼 수 있습니다.
* Click on the image to see it in detail.

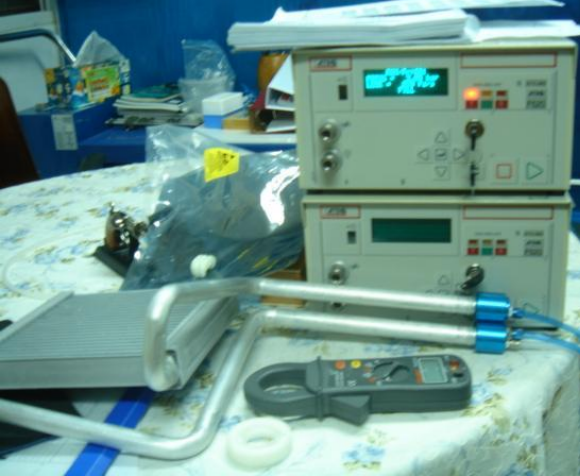

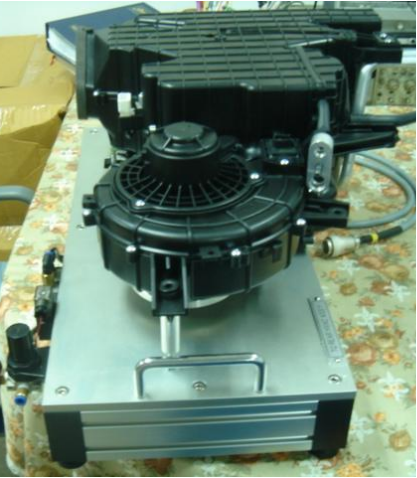

15. Blower Efficiency Tester
* 사진을 클릭해서 자세히 볼 수 있습니다.
* Click on the image to see it in detail.

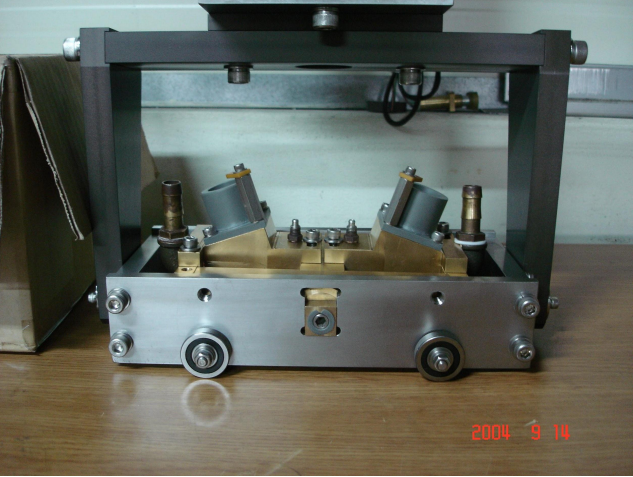

16. SAW UT Probe
* 사진을 클릭해서 자세히 볼 수 있습니다.
* Click on the image to see it in detail.

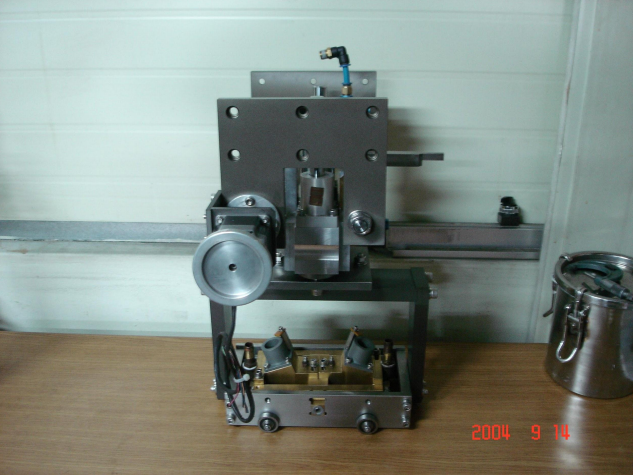

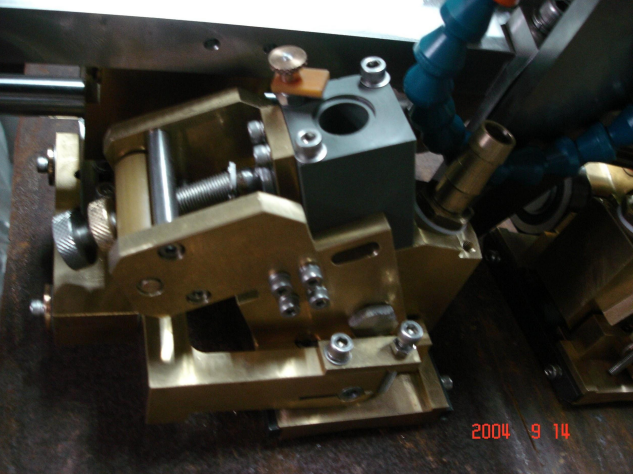

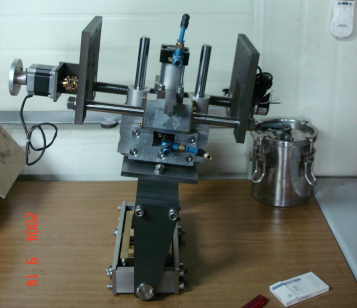

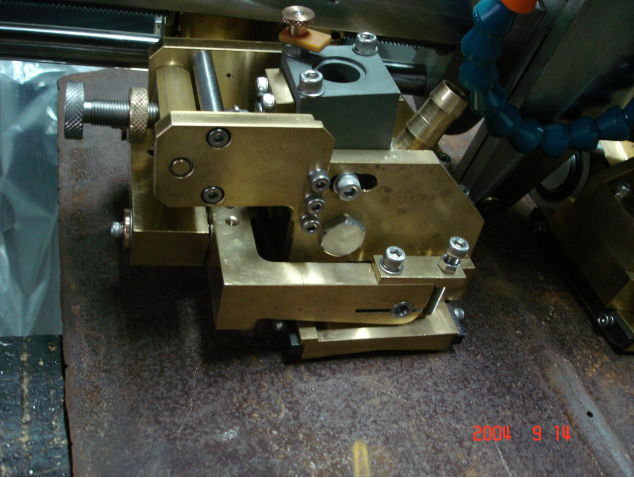

17. Surface UT Probe Block
* 사진을 클릭해서 자세히 볼 수 있습니다.
* Click on the image to see it in detail.

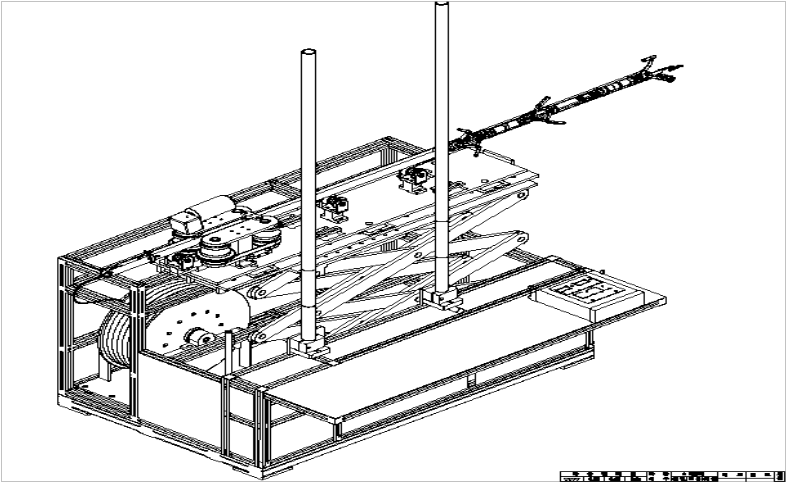

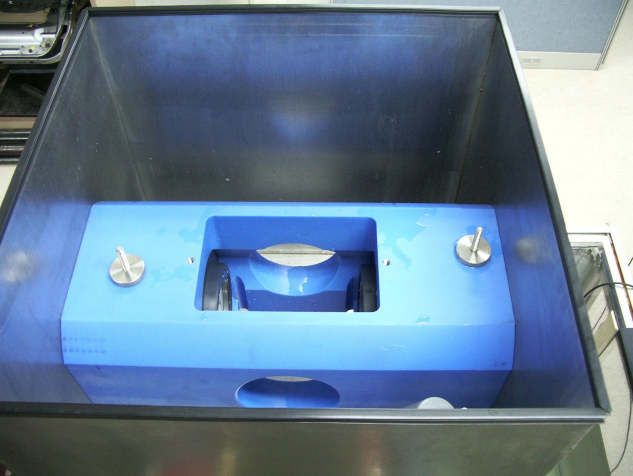

18. Portable Fullbody UT System
* 사진을 클릭해서 자세히 볼 수 있습니다.
* Click on the image to see it in detail.
19. SAW Seam UT System
* 사진을 클릭해서 자세히 볼 수 있습니다.
* Click on the image to see it in detail.

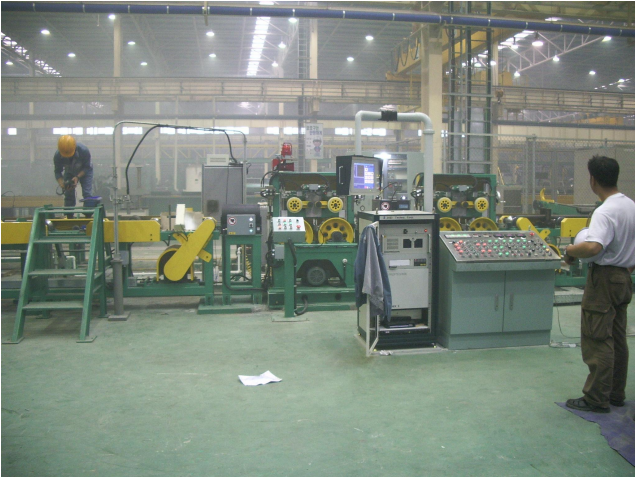

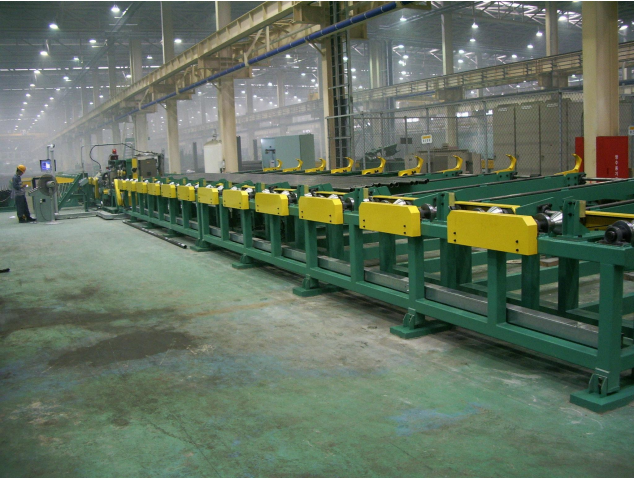

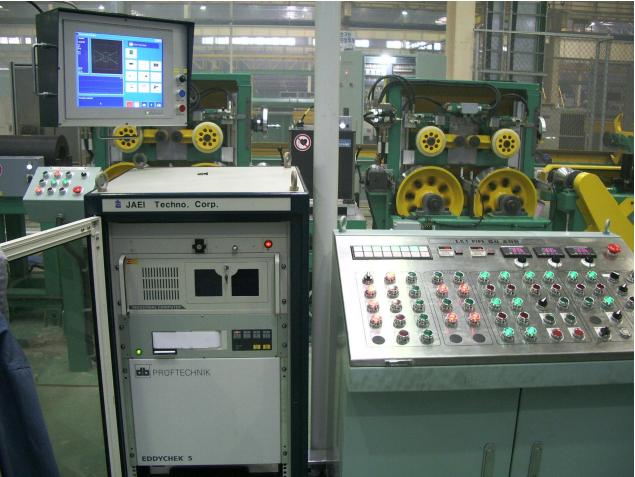

20. ERW Pipe Seam UT & ECT System
* 사진을 클릭해서 자세히 볼 수 있습니다.
* Click on the image to see it in detail.
21. MT Spray System
* 사진을 클릭해서 자세히 볼 수 있습니다.
* Click on the image to see it in detail.
